capaNCDT 6200

模組化的多通道系統 - 可擴充至4通道

超高精度的模組化多通道電容控制器模組

capaNCDT 6200 是第一款完全模組化的多通道電容系統。該控制器可以輕鬆擴展到四個同步通道，以提供靈活的應用。 Micro-Epsilon 的所有電容式感測器探頭都可以使用 capaNCDT 6200 控制器進行操作。透過乙太網路，連接Web 界面進行設定參數和測量。DL6230 是超高精度的訊號放大器。若有超高速的量測需求，capaNCDT 6222 系統也能夠提供最高至20kHz的響應頻率。

聯絡
logo

產品特性

  1. 量測行程 (mm): 0.05 | 0.2 | 0.5 | 0.8 | 1 | 2 | 3 | 5 | 10
  2. 解析度 max. 0.2nm (with DL6230)
  3. 線性度 max. 0.01µm
  4. 響應頻率最高可達 20kHz (-3dB)
  5. 傳輸速度 (數位輸出) 3.9kHz
  6. 模組化 – 可擴充至 4 通道
  7. 類比輸出 (電壓/電流)
  8. Ethernet/EtherCAT 通訊介面
  9. 透過簡易的網頁介面可以輕鬆設定參數
  10. PROFINET的通訊介面
[]
聯絡
Luigi Yang
+886 2 2268 0234
聯絡表單
Your request for: {product}
請填入計算結果已防止系統誤判為機器人
captcha
* 必填資訊
我們謹慎的保護客戶個資，詳見
capaNCDT 6200 measuring system extended to 4 channels

此量測系統有一個主控制器與模組化的訊號放大器。透過模組化的設計，此系統可以隨時擴充至至多4通道。其設計也能透過DIN rail簡易的安裝至設備上。capaNCDT6200可以兼容Micro-Epsilon所有的電容感測器探頭。

透過Web介面輕鬆設定參數

控制器和探頭的整個配置無需任何額外的軟體即可通過Web界面進行取值與設定參數，如輕鬆地設置例如平均值，測量速率等等。

Laptop with web interface

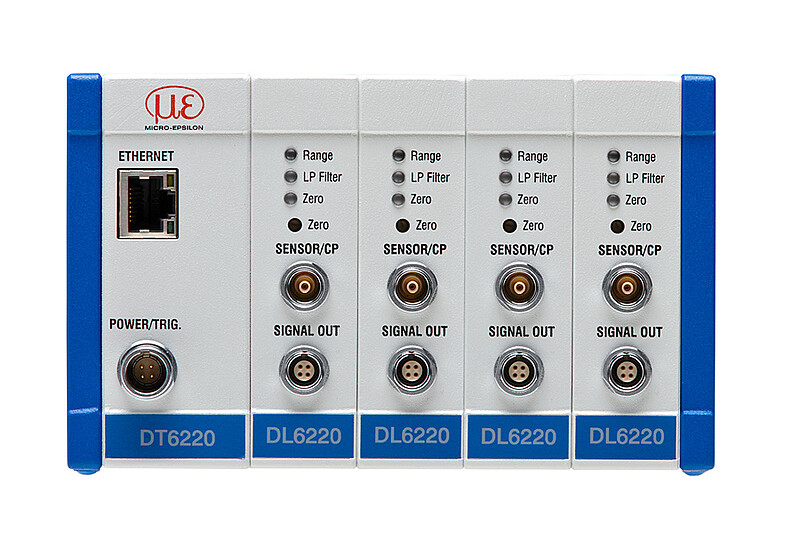

Controller DT6220 with demodulator DL6220

The capacitive DL6220 demodulator is used for numerous capacitive measurement tasks offering high resolution and signal stability. As well as analog outputs, the demodulator is equipped with, depending on the controller variant, an Ethernet or Ethernet/EtherCAT digital interface. The DL6220 demodulator is compatible with all sensors and cables of the capaNCDT series.

Characteristics

  1. Resolution dynamic 0.02 % FSO (5kHz)

  2. Frequency response 5kHz (-3dB)

  3. Analog output 0...10V (short circuit proof), 4...20mA

  4. Digital Ethernet interface (with DT6220 controller); Ethernet and EtherCAT with DT6230 controller

  5. Special tuning: up to triple standard cable length

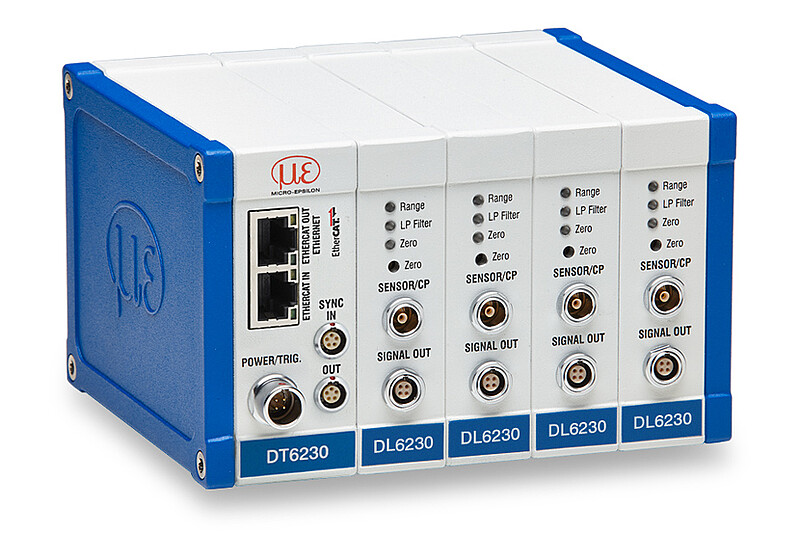

Controller DT6220 with demodulator DL6230

The capacitive DL6230 demodulator is used for high resolution measurement tasks and can be applied in synchronous operation. As well as analog outputs, the demodulator is also equipped with, depending on the controller variant, an Ethernet or Ethernet/EtherCAT digital interface. The DL6230 demodulator is compatible with all sensors and cables of the capaNCDT series.

Characteristics

  1. Resolution dynamic 0.005 % FSO (5kHz)

  2. Frequency response 5kHz (-3dB)

  3. Analog output 0...10V (short circuit proof), 4...20mA

  4. Digital Ethernet interface (with DT6220 controller); Ethernet and EtherCAT with DT6230 controller

  5. Special tuning: up to triple standard cable length

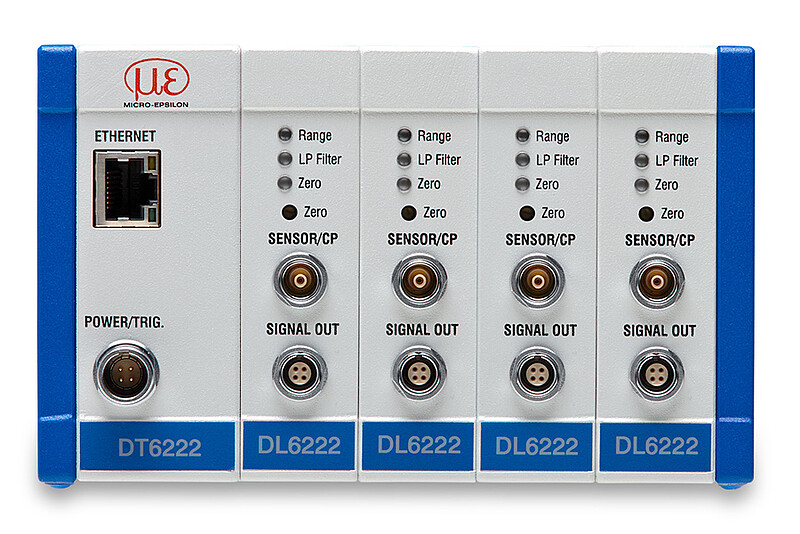

controller capaNCDT 6222

The DT6222 capacitive controller is used for dynamic, capacitive measurement tasks. A frequency response of up to 20kHz (-3dB) enables reliable monitoring of fast processes. As well as analog outputs, the controller is also equipped with a digital Ethernet interface. The DT6222 controller is compatible with all sensors and cables of the capaNCDT series.

Characteristics

  1. Resolution dynamic 0.05 % FSO (20kHz)

  2. Frequency response 20kHz (-3dB)

  3. Analog output 0...10V (short circuit proof), 4...20mA

  4. Digital Ethernet interface

  5. Special tuning: up to double standard cable length (with DL6222/ECL2 demodulator)

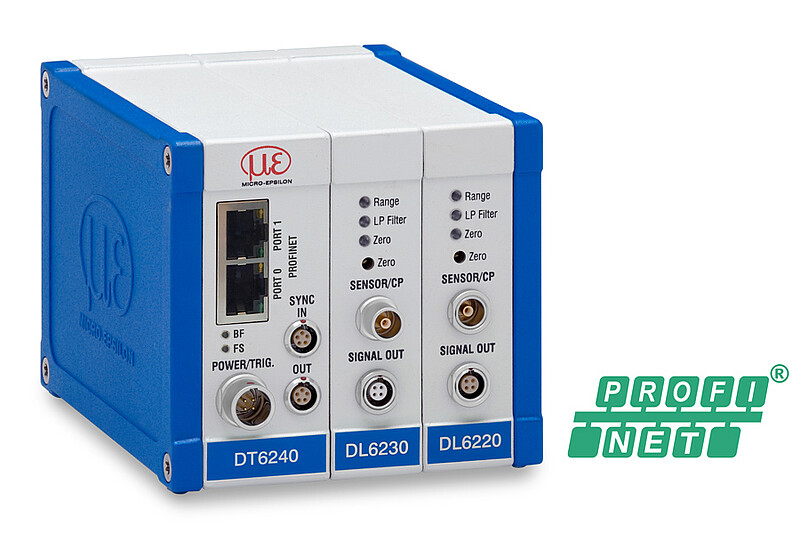

Capacitive standard measuring system with PROFINET

The DT6240 capacitive controller with integrated PROFINET Industrial Ethernet interface allows direct integration of the full sensor performance directly into your PLC via PROFINET without additional interface modules. The measuring system with modular design is particularly impressive due to its price-performance ratio. The DT6240 controller is compatible with all sensors and cables of the capaNCDT series.

Characteristics

  1. Industrial Ethernet interface PROFINET

  2. Modular expandable up to 4 channels

  3. Synchronizable

  4. Resolution dynamic 0.005% d.m. (5kHz)

  5. Analog output 0 ... 10 V (short-circuit proof, 4 ... 20 mA)

  6. Special tuning: up to 3 times standard cable length

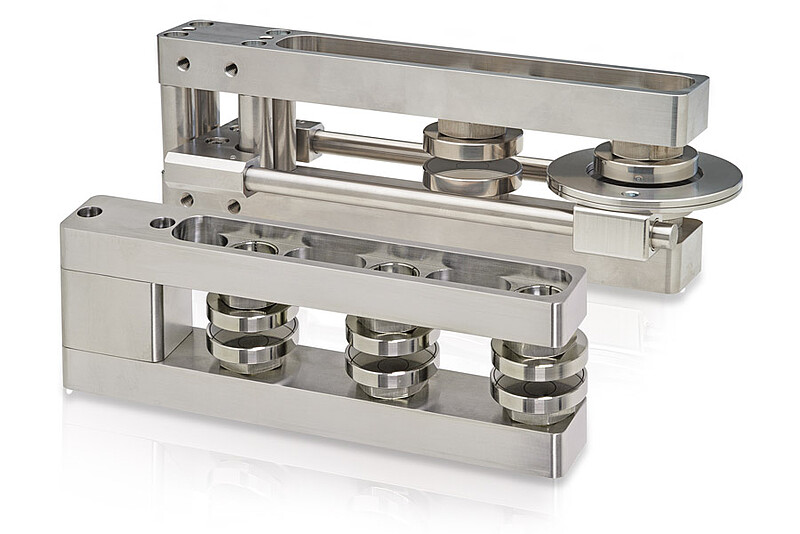

Mounting frame for double-sided thickness measurement

The mounting frame is designed for use with capacitive sensors for two-sided thickness measurements and helps to align the measuring points with one another. The frame allows for the sensors to lie exactly on one axis, meaning that the measuring points are arranged congruently. This prevents measurements at an offset and a reliable measurement result is achieved with the highest possible precision. The mounting frames provide space for up to 6 sensors. Two sensors each form a measuring point.

Characteristics

  1. Multi-track thickness measurement at up to 3 points simultaneously

  2. High temperature stability for precise measurements at temperatures of up to 100 °C

  3. Suitable for vacuum

  4. Extremely compact design

  5. Easy integration and retrofitting in existing systems

  6. Compatible with capaNCDT sensors

  7. Calibratable design for high precision in thickness measurements
