capaNCDT

特殊應用的客製化感測器

Capacitive sensors for specific applications

Application examples are often found where the standard versions of the sensors and the controller are performing at their limits. For these special tasks, the measurement systems can be modified according to the customer’s individual requirements. Changes requested include, for example, modified designs, target calibration, mounting options, individual cable lengths, modified measuring ranges or sensors with integrated controller.

聯絡
logo

Customization solutions

  1. Modified measuring ranges and cable lengths
  2. Special sensor designs: clean room-compatible, for extremely low temperatures (4°K), material option (Invar® or Titanium), with thread
  3. Sensors with integrated electronics
  4. Special coordination to your target
  5. Output options
[]
聯絡
Luigi Yang
+886 2 2268 0234
聯絡表單
Your request for: {product}
請填入計算結果已防止系統誤判為機器人
captcha
* 必填資訊
我們謹慎的保護客戶個資，詳見

Capacitive displacement sensors with Embedded Capa Technology (ECT)

Capacitive sensors with Embedded Capa Technology are designed using a innovative manufacturing technique, which provides the sensor with significantly higher long-term stability. The electrode is embedded in an extremely stable carrier material that provides significantly higher temperature stability compared to conventional sensor designs. This new technology enables different sensor designs in a temperature range from -270°C to +200°C.

Capacitive sensors for magnetic fields, very low temperatures (cryogenics) and vacuum

Capacitive displacement sensors from Micro-Epsilon
Capacitive sensors from Micro-Epsilon are often used in vacuum and clean room applications where they achieve resolutions in the nanometer range. Sensors, cables and feed-through are particle-free to a high degree and used in clean room class 1.
Magnetic field
For environments with strong magnetic fields, Micro-Epsilon offers sensors and cables which are made from non-magnetic materials. The shielding achieved by the triaxial design provides extremely high immunity to interference.
Capacitive sensor for cryogenic temperature
Ideal for very low temperatures / cryogenic technology: The temperature-stable sensor design enables applications around absolute zero while maintaining nanometer resolution.

Available OEM products End

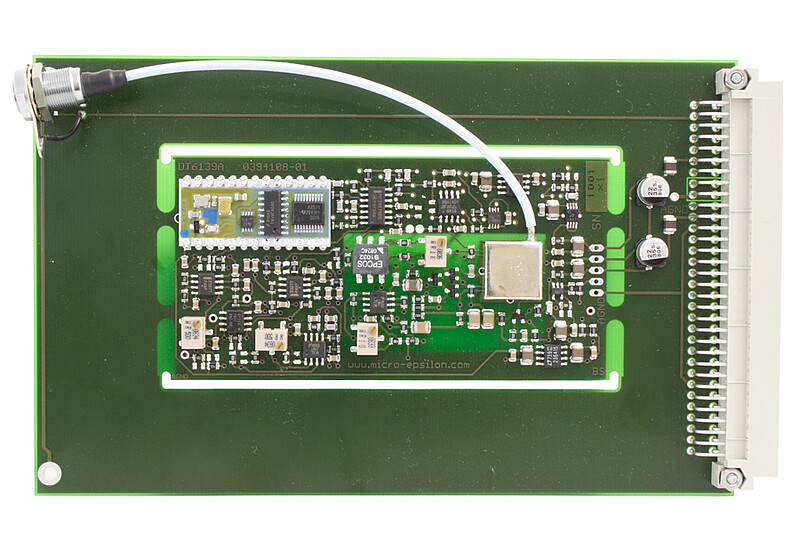

Capacitive OEM measuring system - capaNCDT 6139

The capaNCDT6139 is designed for use in industrial environments. The compact sensor and flexible system design enable economical use in OEM applications such as:

  • Piezo actuators
  • Levelling in Z-axis
  • X- and Y-axis positioning
  • Axial vibrations
  • Thermal expansion

Characteristics

  1. Non-contact measurement on all electrically-conductive materials

  2. High resolution of 2.5nm

  3. High frequency response (2kHz, -3dB)

  4. High repeatability of 5nm

  5. Compact sensor design (10mm)

  6. Controller can be integrated in customer-specific housing

  7. Ideal for small measuring ranges, e.g. 200µm
